Ermak Elit 20-C

594.00 inc. Vat

Compare
Laos - 60 kg , .

Full stone loading as a gift!

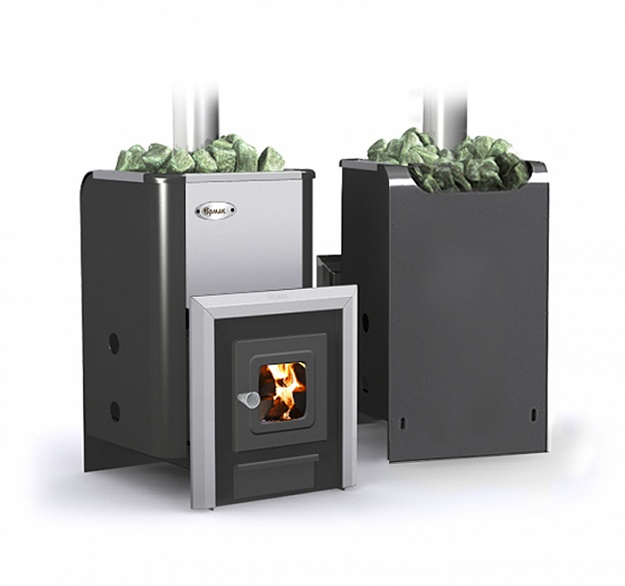

Ermak-Elit 20-C is a universal bath stove, in which firewood or fuel briquettes can be used as fuel. The design of the furnace is specially designed for maximum efficiency with a compact housing size. The furnace is completely fireproof and has the appropriate safety certificates.

The furnace is designed for a steam room volume from 10 to 24 m3

A feature of this furnace is a fire chamber made of heat-resistant stainless steel and a furnace door with panoramic heat-resistant glass Robax (Germany) with a diagonal of 19 cm.

Reliability of the furnace is ensured by a combination of optimal design solutions, automatic welding and high-quality heat-resistant materials used.

The special design of the furnace, which provides for the possibility of installing additional mounted and built-in equipment, allows you to create your own unique version. Hinged options are located on the back of the oven.

The following can be additionally installed on the Ermak-Elit 20-C furnace:
Heat exchanger – for heating water in a remote tank or heating
Steam generator (steam generator) – to create soft finely divided steam
40 or 55 liter hinged tank – for hot water in the steam room
Remote tank up to 100 l – for hot water in the washing
Mounted net-heater – to accommodate an additional 50 kg. stones
Additional convector screen – for protection against hard infrared radiation from the rear wall of the furnace and increase convection
Various options for the chimney pipe (pipe convector, economizer, tank, etc.)
Due to the ability of the furnace to change according to human needs, it can equally be used to create modes of both a Russian steam bath and a Finnish dry-air sauna.

Features of the Ermak-Elit 20-C bath stove:
Warranty: up to 3 years
High efficiency due to the unique design of the furnace, furnace and complex smoke channels
Stainless steel firebox and chimneys
Portable fire tunnel
Fuel: firewood, briquettes
Opportunity to upgrade the furnace with additional options
Fast heating of the room – due to the strong convection of the convector cover
A unique heat exchange system for the design of the furnace that evenly distributes heat loads
Optimum design of the chimney system, with an increased length of the passage of the flame and flue gases
Large firebox with log length up to 58 cm
Open type heater with large volume and heat transfer area
Swivel door with glass (19 cm diagonal) and self-cooling handle
Durable cast iron grate and large ash scoop
Duct cleaning hole
Materials:
The material for the manufacture of the furnace, heater and flue system is heat-resistant stainless steel AISI 430 with a thickness of up to 3 mm, with a chromium content of up to 17% and a descaling temperature of 900 ° C. The back wall of the furnace is made of structural carbon steel up to 4 mm thick.

Design:
The Ermak Elite 20-C stove has a classic design and rounded body shapes. The case, door and ash pan are painted with high-quality wear-resistant silicone paint, which polymerizes after the first furnace firing.

The front wall of the casing, the decorative frame of the tunnel and decor elements are made of chrome-plated stainless steel.

TECHNICAL CHARACTERISTICS OF THE MODEL

Name
Ermak-Elit 20-C

Furnace power, kW
20

The volume of the steam room, m3
10-24

Diameter of the chimney, mm
115

Chimney thermal resistance class
T 600

The mass of stones in the heater, kg
60 – 70

Oven dimensions (length / width / height), mm
730/450/760

The mass of the furnace, kg
60

The maximum length of firewood, cm
58
